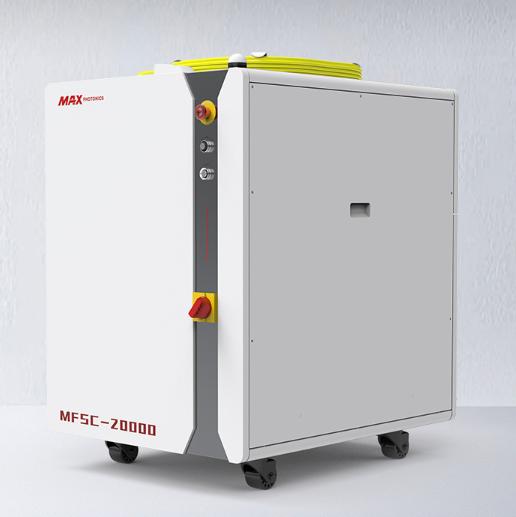

Laser

ü International renowned brand, with strong device stability and high product reliability.

ü Excellent beam quality, high cutting and welding precision.

ü High electro-optical conversion efficiency, energy saving and cost reduction.

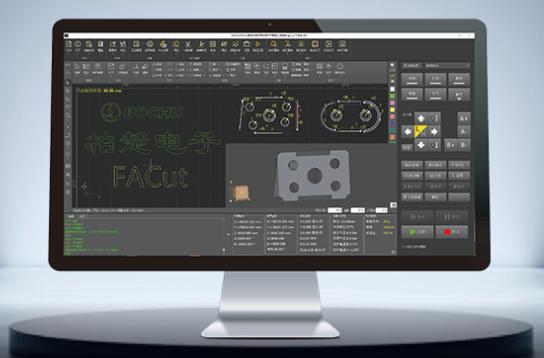

System

ü The performance of the professional CNC cutting system has been enhanced by 25%

ü A variety of practical functions have been customized to improve processing efficiency

ü More user-friendly interface design, making operation more convenient

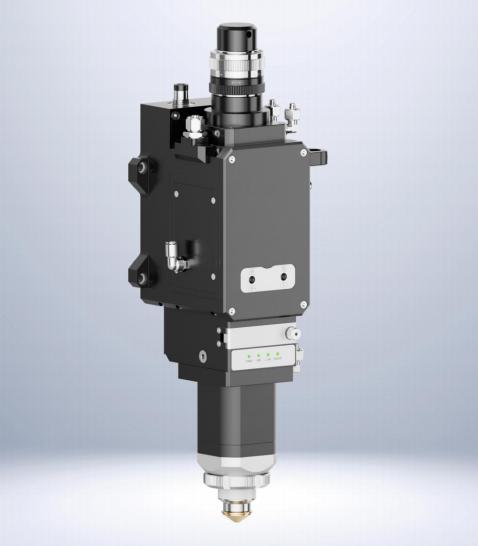

Laser head

ü High-end automatic focusing cutting head

ü Multi-lens protection design, extending the lifespan of the core lenses of the cutting head

ü Real-time monitoring of multiple data including air pressure and lens temperature, ensuring greater safety and convenience

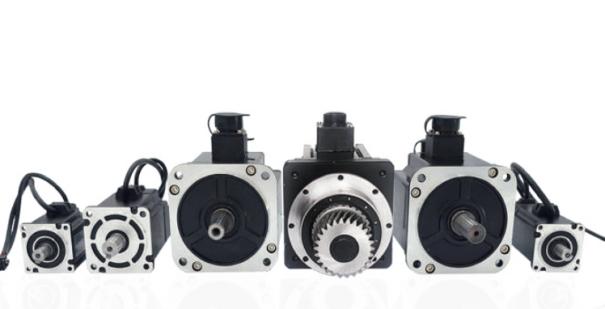

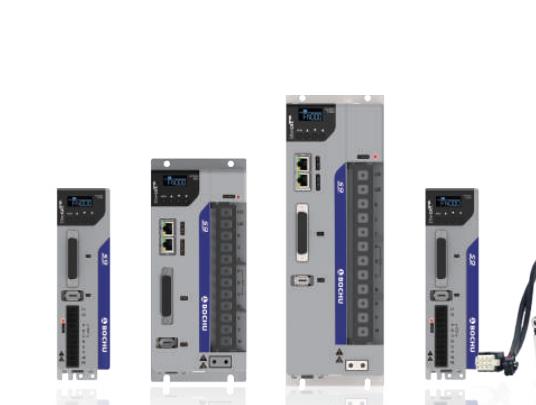

Servo motor and drive

ü The output torque can reach up to 300%, and the maximum rotational speed can reach 5000 rpm.

ü All the product series have obtained the CE certification from the Swiss SGS Testing & Certification Company.

ü Standard equipped with dynamic braking, integrated STO, complete internal servo protection

ü Supports seamless installation of books, saving space

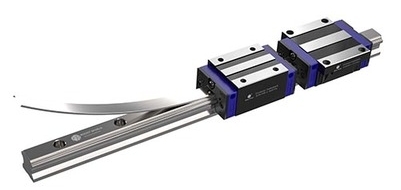

Guide rail

ü Double dust-proof scraper protection

ü Metal guide rail cover shell, preventing the screw mounting holes from being exposed

ü Capable of withstanding high loads, smooth movement, and lower noise

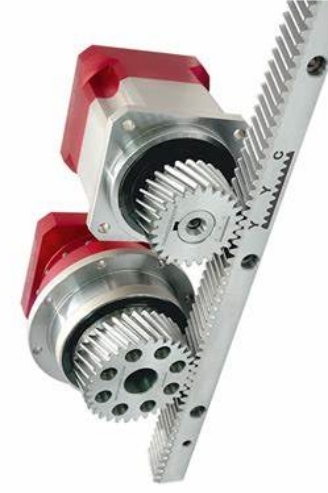

Gear rack

ü The grinding accuracy is outstanding, with ISO 4 standard controlling the error and the repeat positioning accuracy reaching ±0.01mm.

ü The surface treatment is exquisite, with the assistance of high-frequency quenching / hard chrome plating process, and the tooth surface hardness reaches HRC55 - 60.

ü The helical gear meshing line is long, the transmission is smooth without impact, noise is reduced by 15 dB compared to straight gears, and the fatigue resistance strength is increased by more than 30%.

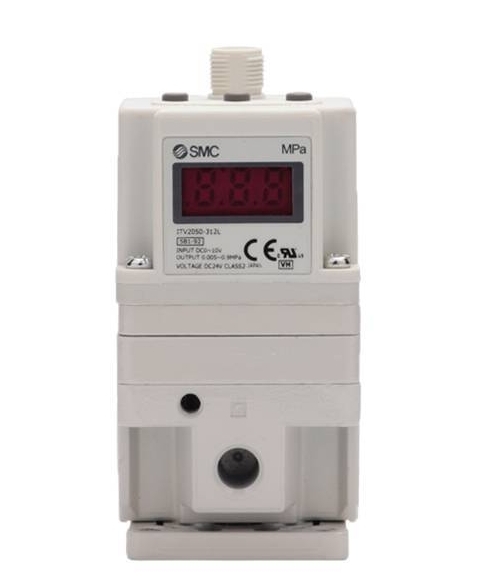

Proportioner

ü High-precision flow control, with rapid and stable response, suitable for various working conditions.

ü Excellent linear output characteristics, precisely matching system parameters, with minimal control error.

ü Strong anti-interference ability, resistant to oil contamination, and stable operation in complex environments.

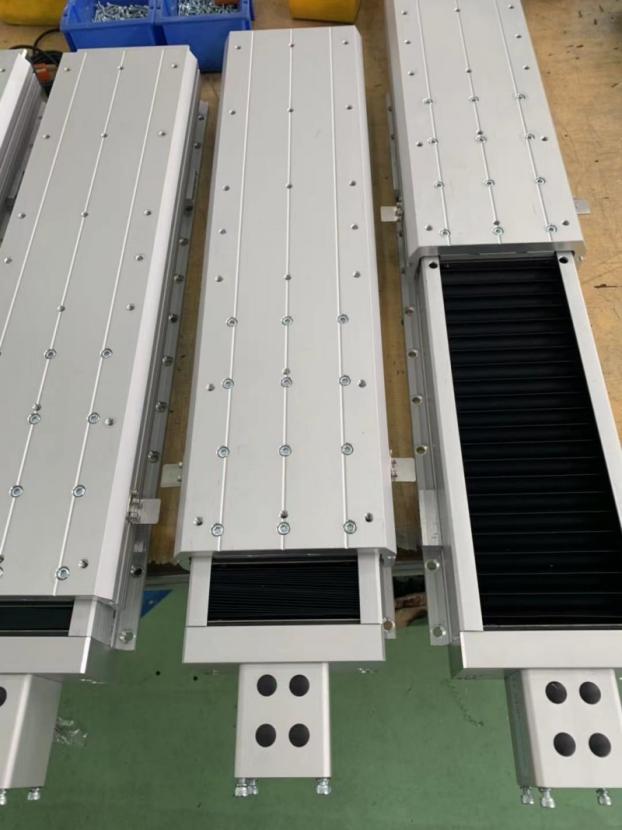

Closed Z axis slider

ü The fully enclosed structure can effectively prevent dust, metal debris and other contaminants from entering the slide table, avoiding their intrusion. It can prevent wear, affect accuracy, and even cause equipment failure. It can maintain a positioning accuracy of ±0.01mm for a long time high-precision processing.

ü The sealed cavity can form a stable lubrication environment and does not require maintenance. Traditional open-type slide tables need to frequently add oil; otherwise, due to insufficient lubrication, friction will increase, noise will rise, and even the lifespan of components will be shortened.

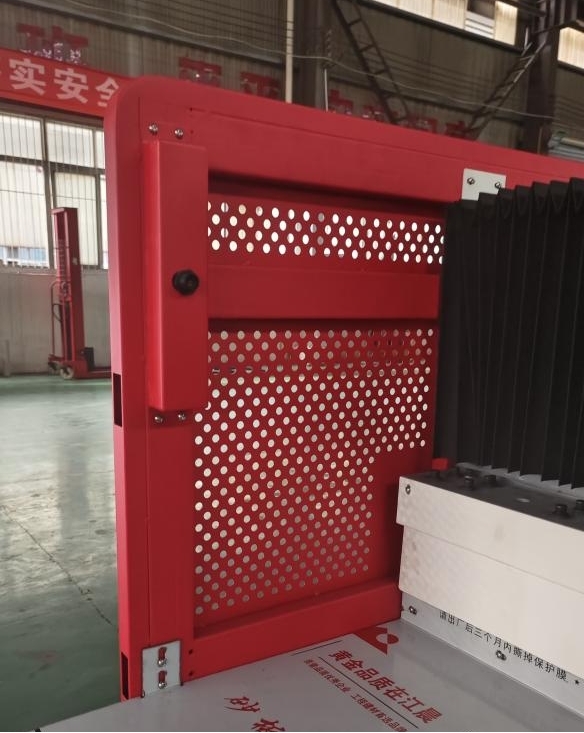

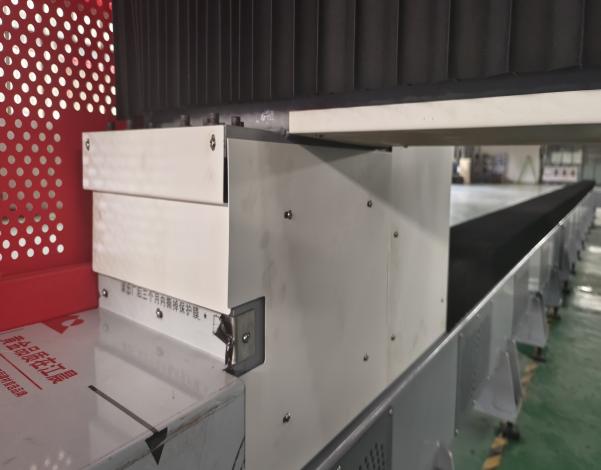

Crossbeam Torque Adaptive Structure

ü The crossbeam is equipped with a Y-axis slider protection structure. When the equipment foundation undergoes deformation, it can not only ensure the processing of high-precision equipment, but also prevent the slider from being damaged due to abnormal lateral tension, thereby extending the service life of the slider.

Safety light curtain protection

ü The safety curtain protection device in the laser cutting machine works by emitting infrared beams to form a protective barrier, preventing people from entering the dangerous area and avoiding laser burns or mechanical injuries.

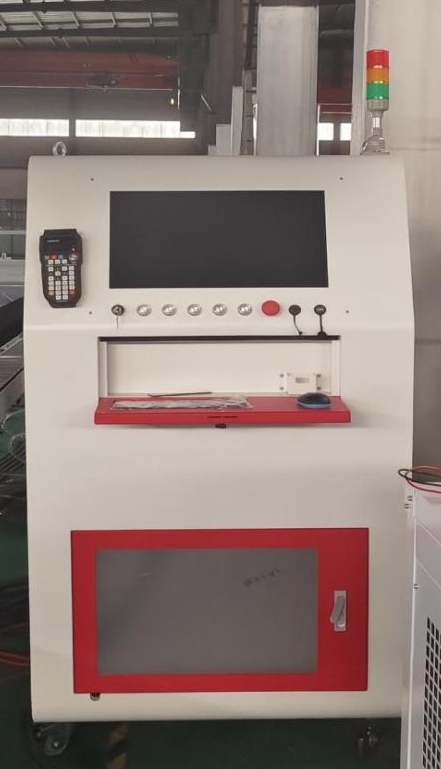

Independent electrical control cabinet

ü It is used to install control circuits, drivers and other components, to regulate parameters such as laser power and movement trajectory, and to ensure the safe and orderly operation of the equipment.

ü The monitor has added acrylic protection to prevent it from being damaged accidentally by external forces.

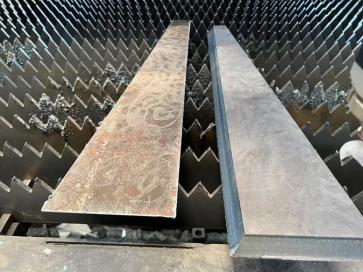

straight line Bevel cutting

ü Add a set of functions for cutting straight line bevel cutting, equipped with a single bevel rotation A axis, which can cut straight line bevels.
